Static Mixer Applications Across Industries

Engineering case studies from refineries, chemical plants, water utilities, and hygienic processing facilities. Real process data, real results.

Where Static Mixers Are Specified

Static mixers are inline mixing devices with no moving parts. A series of geometric elements inside a pipe or housing splits, rotates, and recombines the process stream as it flows through, producing a homogeneous blend or triggering fast chemical reactions. Because they have no shaft seals, no bearings, and no motor, static mixers fit duties where dynamic mixers cannot — flammable solvents, sterile pharmaceutical lines, buried pipelines, and remote wellhead skids.

The selection of element geometry depends on the process goal. SV (helical) elements deliver plug-flow radial mixing with low pressure drop and minimal fouling, making them the standard for low-viscosity blending and gas mixing. SK (multi-strand helical) elements impose high shear and turbulence at the cost of greater pressure drop, which suits high-viscosity blending, polymer activation, and immiscible liquid-liquid dispersion. SX (interleaved plate) elements handle laminar-flow mixing of viscous streams, while SH and SL geometries cover gas-gas and laminar specialty duties.

The application library below organizes projects by industry. Each card links to detailed case studies with process flows, sizing rationale, and measured outcomes. If you have a process condition not represented here, our engineering team can size a unit from Reynolds number, viscosity, and target coefficient of variation (CoV) — typically within 24 hours.

Industries We Serve

Chemical & Petrochemical

Inline blending of fuel oils, polymers, acids, and intermediates. SK and SV types handle viscosities from 1 cP to 50,000 cP. Typical duties include oil blending at refineries, acid-base neutralization, asphalt polymer modification, and solvent dilution. Pressure ratings to ANSI 600, materials from carbon steel to alloy 625.

Oil & Gas

Crude oil blending, diesel pour-point depressant injection, produced-water treatment, and gas-methane mixing at wellhead and gathering stations. Explosion-proof installations, NACE MR0175 compliance for sour service, and offshore-rated housings for FPSO and platform duty. Flow rates from 5 m³/h to 2000 m³/h.

Pharmaceutical

GMP-compliant solution mixing, API-carrier blending, WFI dilution, buffer preparation, and clean-in-place compatible installations. SS316L with Ra ≤0.8 µm internal finish, Tri-Clamp connections, full traceability with material certificates and surface roughness reports. USP <905> content uniformity achievable above 99.5%.

Food & Beverage

Dairy processing (yogurt smoothing, milk standardization), beverage syrup blending, sauce and dressing emulsification, vitamin premix incorporation, and CIP-compatible hygienic installations. SS304/SS316L, EHEDG-compliant geometries, FDA-compliant elastomers. Flow rates from 0.5 m³/h to 50 m³/h.

Water Treatment

Coagulant dosing (PAC, ferric chloride, alum), flocculant activation, pH adjustment, chlorine and ozone injection, and polymer activation for sludge dewatering. SV type for low-viscosity dosing lines, SK type for high-viscosity polymer make-down. Typical CoV below 5% at scale-up ratios to 1000:1.

Environmental

Flue-gas desulfurization reagent mixing, scrubber liquid preparation, landfill leachate treatment, and industrial wastewater neutralization. FRP and PP housings for corrosive duty, alloy 20 or Hastelloy for chloride-bearing streams. Continuous monitoring integration with online pH and ORP probes.

Featured Case Studies

Selected installations with documented process data, performance metrics, and engineering outcomes.

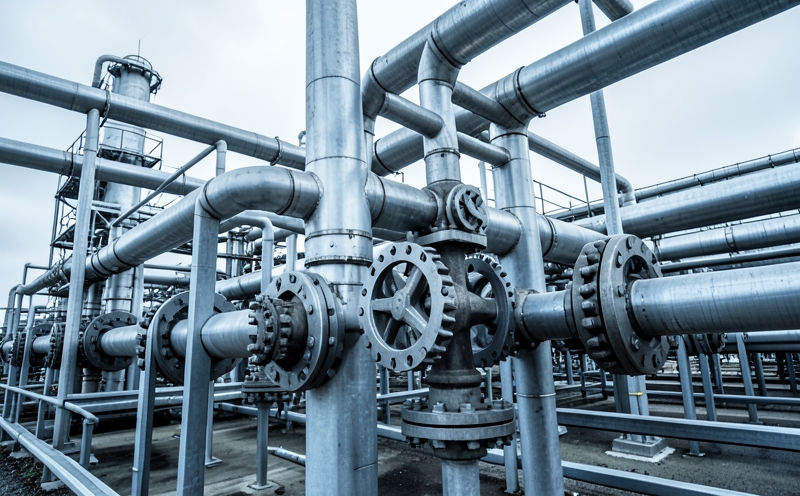

Oil blending case study

Heavy Fuel Oil Blending with Pour-Point Depressant

Refinery · SK Type · 500 cP

A coastal refinery processing 50 m³/h of heavy fuel oil needed to inject pour-point depressant (PPD) at 800 ppm to meet winter-grade specifications. The high viscosity of the base stock and the low dosage ratio (1250:1) defeated conventional dynamic in-line blenders — additive starved through the suction line and produced periodic pipeline blockages when undispersed PPD solidified at the wall.

We supplied an SK-type mixer in DN150 with 12 elements, sized to deliver a CoV below 1% across the operating viscosity range. After installation, the refinery recorded zero pipeline blockages through two winter cycles and achieved uniform additive distribution confirmed by weekly base-stock sampling at the receipt terminal.

Read Case Study

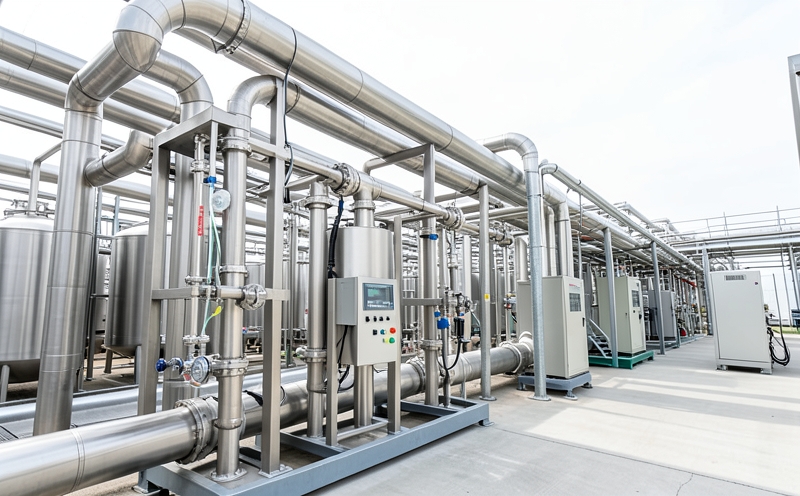

Water treatment case study

Continuous Acid-Base Neutralization Loop

Chemical Plant · SV Type · 15 m³/h

A specialty chemical plant generating 15 m³/h of acidic process wastewater (pH 2, HCl-bearing) needed to neutralize to pH 7 before biological treatment. The existing stirred-tank neutralizer required constant operator attention: pH overshoots to 9-10 caused caustic consumption spikes and intermittent discharge-permit excursions. Residence time in the tank was 8 minutes, which could not respond to influent variability.

An SV-type static mixer with 6 elements in DN80 replaced the tank. The 0.5-second residence time inside the mixer, combined with feedback control on the NaOH dosing pump, brought pH excursions to within ±0.2 of setpoint. Manual neutralizer adjustments were eliminated, and the operator workload dropped by 90% on the affected shift.

Read Case Study

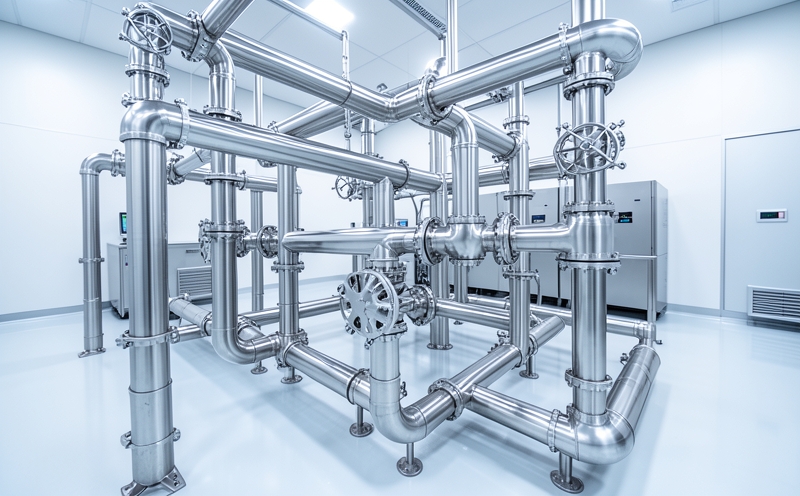

Food and pharma case study

Polymer Activation for Sludge Dewatering

Municipal WWTP · SK Type

A 200,000 m³/day municipal wastewater treatment plant was feeding 0.3% cationic polyacrylamide (CPAM) into the centrifuge feed line for sludge dewatering, but the polymer was not fully activated. The result: high polymer consumption (18 kg/ton dry solids) and a cake dryness of only 18%. The conventional in-line static mixer was undersized for the high-viscosity activation duty and provided insufficient shear and residence time to uncoil the polymer chains.

Replacing it with an SK-type mixer in DN50 with 8 elements increased activation residence time to 1.4 seconds at peak flow. Cake dryness rose to 22.5%, polymer consumption fell to 13.5 kg/ton dry solids, and the plant saved an estimated 480,000 RMB annually on polymer alone. The payback period was 4.2 months.

Read Case Study

Selection by Process Goal

A process engineer typically selects a static mixer by defining the primary goal. The table below summarizes how we map common process goals to mixer geometry and material.

Process GoalTypical MixerMaterialKey Parameter
Additive injection (low viscosity)SV typeSS304 / SS316LCoV ≤ 5% at 1000:1 ratio
High-viscosity blendingSK typeSS316L / Carbon steelViscosity 1,000 – 50,000 cP
Acid-base neutralizationSV typePVDF / PP / SS316LResidence < 1 s, pH ±0.2
Polymer activationSK typeSS316LActivation > 95%
Gas mixing (low pressure drop)SV typeSS304 / FRPΔP < 50 mbar
Hygienic food / pharmaSK / SV typeSS316L Ra≤0.8µmCIP-compatible, Tri-Clamp
Highly viscous laminar mixingSX typeSS316LRe < 10, viscosity > 10,000 cP
Chlorine / ozone injectionSV typePVDF / SS316LMass transfer coefficient

Need a custom selection? Our engineering team responds within 24 hours. Send us your process data →
